Chapter 2: Searching State Spaces

This page covers state-space representation and uninformed (blind) search. It continues in Informed Search, Local Search & Genetic Algorithms, which covers heuristic search (Greedy, A*), local search (Hill Climbing, Simulated Annealing, Tabu Search), and Genetic Algorithms.

2.1 Introduction¶

Search is one of the most fundamental problem-solving techniques in artificial intelligence. Many AI problems can be formulated as finding a sequence of actions that transforms an initial state into a goal state.

Core Concept¶

The goal of an agent is to:

• Start from an initial state

• Perform a sequence of actions

• Reach a goal state (or a state with high desirability)

Two Main Scenarios¶

1. Goal-Oriented Search: Find a path from start to goal

   • Example: Solving a maze, solving a puzzle

   • Cost may be associated with paths

2. Optimization Search: Find state with minimal loss

   • Example: Eight-queens placement, scheduling

   • Cost is associated with states themselves

Applications¶

Why Search Matters¶

1. No Direct Formula: Many problems have no closed-form solution

2. Large Solution Space: Too many possibilities to enumerate

3. Need Systematic Methods: Avoid aimless wandering

4. Trade-offs: Different strategies balance time, memory, and solution quality

2.1.1 State Space as a Graph¶

Modeling the state space as a directed graph enables systematic search:

Key Concepts:

• Node: Represents a state

• Edge: Represents a transition (action) from one state to another

• Path: Sequence of edges from initial state to goal

Example: Eight-Queens Problem¶

Problem: Place 8 queens on a chessboard so none attack each other.

State Space Design:

Approach 1 (Incremental):

• State: Placement of k ≤ 8 queens (no attacks)

• Action: Add one more queen

• Initial State: Empty board (k=0)

• Goal State: 8 queens placed (k=8)

• Graph Type: Directed Acyclic Graph (DAG)

Approach 2 (Complete State):

• State: Any placement of 8 queens (attacks allowed)

• Action: Move one queen to different square

• Initial State: Random placement

• Goal State: No attacks

• Graph Type: Undirected graph with cycles

State Space Size¶

2.1.2 Search Space vs Search Tree¶

The state space graph represents all possible states and transitions in the problem domain, while the search tree represents the specific paths taken during the search process.

Key Differences:

Example: State Space Graph

Corresponding Search Tree:

The search tree unfolds paths from the root, potentially duplicating states reached via different paths.

Example with Cycles:

Consider a graph:

• State Space: 4 nodes (S, a, b, G)

• Search Tree: Could expand infinitely

This is why search algorithms must track visited states to avoid infinite loops!

2.1.3 Search Problem Examples¶

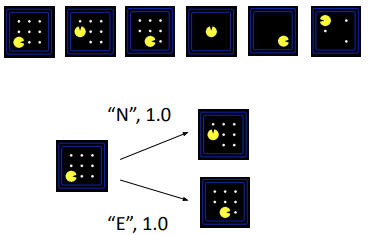

Example 1: Pacman¶

Problem: Navigate Pacman through a maze to collect all food pellets.

State Space Design:

• State: Pacman’s current position + remaining food pellets

• Successor Function: Moving in one of four cardinal directions (N, E, S, W)

• Start State: Pacman at initial position with all food pellets present

• Goal Test: All food pellets have been collected

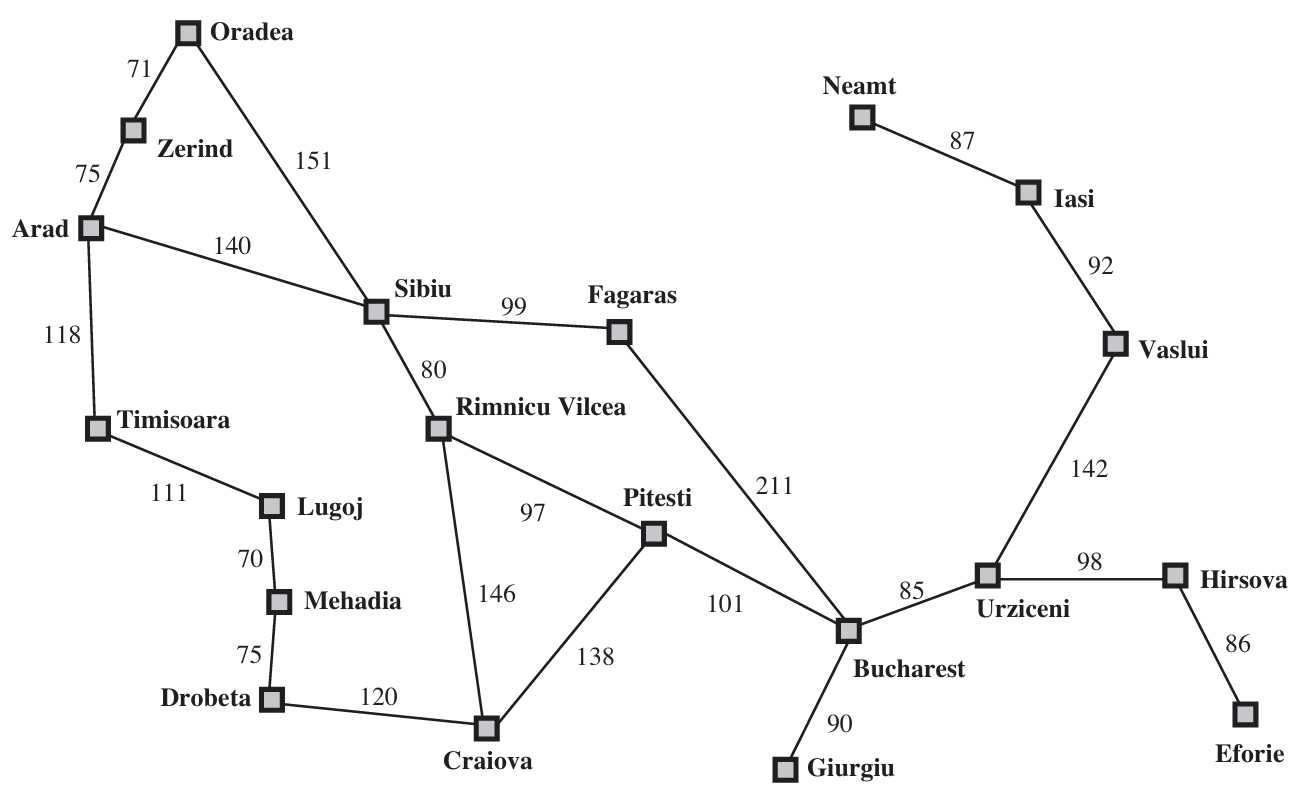

Example 2: Traveling in Romania¶

Problem: Find the shortest route between cities.

State Space Design:

• State: Current city location

• Successor Function: Moving from one city to another connected by a road (cost = distance)

• Start State: Initial city (e.g., Arad)

• Goal Test: Reaching destination city (e.g., Bucharest)

Example 3: Eight-Puzzle¶

Problem: The Eight-Puzzle is a sliding puzzle that consists of a 3x3 grid with eight numbered tiles and one empty space. The objective is to arrange the tiles in a specific order by sliding them into the empty space.

State Space Design:

• State: Configuration of tiles on the 3×3 board

• Successor Function: Sliding a tile into the empty space

• Start State: Initial scrambled configuration

• Goal Test: Tiles arranged in desired order (1-8 with blank in corner)

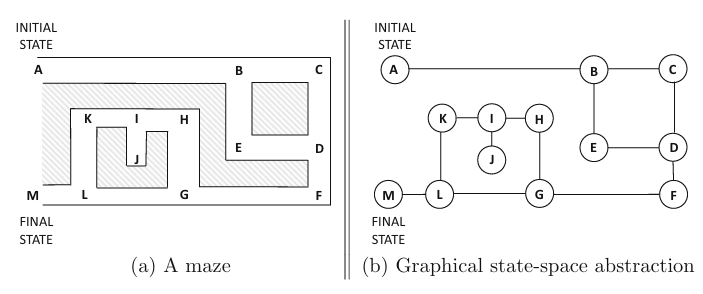

Example 4: Online Maze Search¶

State Space Design:

• State: Agent’s current position in the maze

• Successor Function: Moving in one of four cardinal directions (up, down, left, right) based on current position and maze layout

• Start State: Initial position in the maze

• Goal Test: Reaching the exit of the maze

2.2 Uninformed Search Algorithms¶

Uninformed search algorithms, also known as blind search algorithms, are a category of search strategies that operate without any domain-specific knowledge about the problem being solved. They explore the search space systematically, relying solely on the structure of the state space and the goal test to find a solution.

Generic Search Framework¶

All uninformed search algorithms follow this template:

Algorithm: GenericSearch(Initial State s, Goal Condition G)
Input: Initial state s, Goal condition G
Output: Path from s to goal, or failure

begin
    LIST ← {s}              // Frontier nodes to explore
    VISIT ← ∅               // Visited nodes
    pred ← empty array      // Predecessor tracking

    repeat
        if LIST is empty then
            return failure

        // Selection strategy differs by algorithm
        Select node i from LIST
        Delete i from LIST
        Add i to VISIT

        if i satisfies G then
            return reconstruct_path(pred, s, i)

        // Expand node i
        for each node j adjacent to i do
            if j not in VISIT and j not in LIST then
                Add j to LIST
                pred[j] ← i
    until LIST is empty or goal found
end

Key Components:

• LIST: Frontier nodes (boundary of explored region)

• VISIT: Already explored nodes

• pred: Predecessor array to reconstruct path

• Selection Strategy: Determines which algorithm we get

2.2.1 Breadth-First Search (BFS)¶

BFS explores nodes level by level, visiting all nodes at depth d before any node at depth d+1.

Selection Strategy: FIFO queue (First-In-First-Out)

How it works:

1. Start with initial state in queue

2. Remove first node from queue

3. Check if it’s a goal

4. Add all unvisited neighbors to end of queue

5. Repeat

BFS Exploration Pattern:

Properties:

*Only when all actions have equal cost

Where:

• b: branching factor (average number of successors)

• d: depth of shallowest goal

Advantages:

• Guaranteed to find solution

• Finds shortest path (minimum edges)

Disadvantages:

• Memory intensive: Must store all nodes at current level

• Slow for deep goals

2.2.2 Depth-First Search (DFS)¶

DFS explores as deep as possible along each branch before backtracking.

Selection Strategy: LIFO stack (Last-In-First-Out)

How it works:

1. Start with initial state on stack

2. Pop top node from stack

3. Check if it’s a goal

4. Push all unvisited neighbors onto stack

5. Repeat

DFS Exploration Pattern:

Properties:

Where:

• m: maximum depth of any node

Advantages:

• Memory efficient: Only stores nodes on current path

• Fast if solutions are deep

Disadvantages:

• Can get stuck in infinite loops (needs cycle detection)

• May find suboptimal solutions

• Not complete in infinite spaces

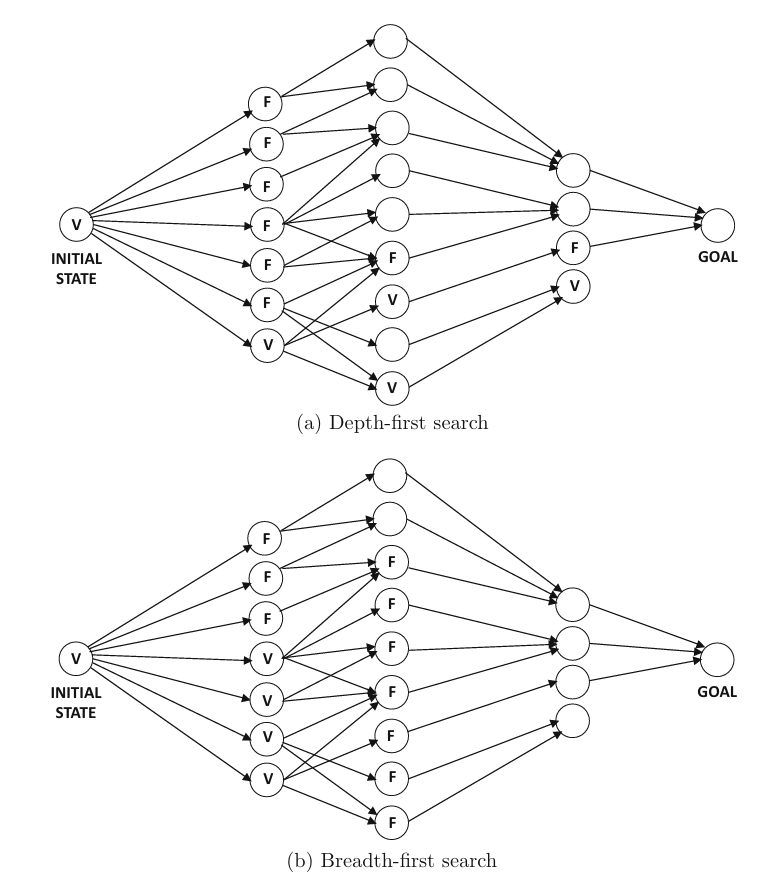

Comparison: BFS vs DFS¶

2.2.3 Uniform-Cost Search (UCS)¶

UCS generalizes BFS to handle weighted graphs where actions have different costs. It is an uninformed search algorithm that expands the least costly node first, ensuring that the path to the goal is optimal in terms of cost. It uses a priority queue to manage the frontier, where nodes are prioritized based on their cumulative cost from the start state.

Selection Strategy: Priority queue ordered by path cost g(n)

Key Idea: Always expand the node with the lowest cumulative path cost from start.

Path Cost: g(n) = sum of edge costs from start to node n

How it works:

1. Maintain priority queue of nodes, ordered by g(n)

2. Always expand node with smallest g(n)

3. Update costs when shorter paths are found

Detailed Example:

After UCS execution:

Properties:

Where:

• C*: cost of optimal solution

• ε: minimum edge cost

2.2.5 Bidirectional Search¶

Run two simultaneous searches: one forward from start, one backward from goal. Stop when they meet.

Key Idea: Two small searches are faster than one large search.

Algorithm BiSearch(Initial State: s, Goal State: g)
 begin
	FLIST= { s }; BLIST= { g };
	repeat
		Select current node if from FLIST based on pre-defined strategy;
		Select current node ib from BLIST based on pre-defined strategy;
		Delete nodes if and ib respectively from FLIST and BLIST;
		Add nodes if and ib to the hash tables FVISIT and BVISIT, respectively;
		for each node j ∈ A(if) not in FVISIT reachable from if do
			Add j to FLIST; pred(j)=if;
		for each node j ∈ B(ib) not in BVISIT do
			Add j to BLIST; succ(j)=ib;
	until FLIST or BLIST is empty or (FLIST ∩ BLIST)= {};
	if (either FLIST or BLIST is empty) return failure;
		else return success;
	{ Reconstruct source-goal path by selecting any node in FLIST ∩ BLIST
	and tracing predecessor and successor lists from that node; }
 end

Complexity Improvement:

• Normal BFS: O(b^d)

• Bidirectional: O(2 × b^(d/2)) = O(b^(d/2))

Example: If b=10, d=6:

• Normal: 10^6 = 1,000,000 nodes

• Bidirectional: 2 × 10^3 = 2,000 nodes

Requirements:

• Must be able to generate predecessors

• Must be able to check if nodes from both searches match

Challenges:

• Requires goal state to be explicitly known

• Need to detect when searches meet

• More complex implementation

Summary: Uninformed Search Algorithms¶

*Optimal only for equal-cost actions
